New Design 30W-240W LED Street Light

ALS Series

Electrical Characteristics

  • 85-265 V (50 – 60 Hz) input voltage

  • Power factor at full load more than 0.95

  • Equipped with Philips/Meanwell/Invertronics driver

  • Dimming optional

  • Protection Class I or II

  • System lighting effect: 120-130 lm/W

Mechanical Characteristics

  • Housing made of die casting aluminum

  • Fine structure with slim and compact design

  • Top pole or side entry mounting

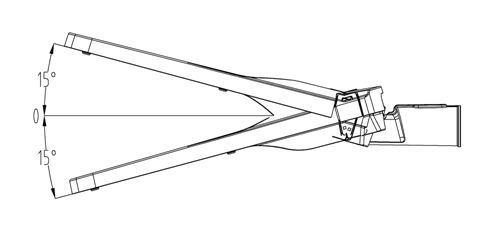

  • Capable of free inclination from -15º up to +15º

  • Optical PC lens, high light transmittance

  • All screws are made of stainless steel

Excellent Luminous Efficiency

  • High brightness LED chips with LM80 approved , brand Philips/Bridgelux/Epistar is for your choice.

  • Optical PC lens Teijin 1250z ,provides a high light transmittance over 92% .​Also 5 beam angle Type I,II,III,IV,V can be customized .

  • Super white glass, withstands IK08.


Dust Proof Housing | Tool Free Maintenance

  • ALS adopts smooth die casting aluminum housing ,successfully prevent the dust and snow from accumulating on the surface, thus better heat dissipation and longer life time .


  • You can easily open and cover up the housing by pushing the aluminum buckle ,to check and replace the driver .

Safe & Long Lifetime

  • MeanWell /Inventronics/Philips driver for your choice, ensures 5 years above warranty time .

  • Osram Or Philips Surge Protection Device (SPD) available , protects outdoor luminaire against damaging spikes and transients .

  • The circuit breaker makes maintenance more safe .When the lid is opened, the light power is automatically cut off.


Smart Lighting System (Optional)

As we'll find ,smart lighting become a trend for intelligent lighting for smart cities . So you will find basic smart lighting solution to the smartest which connect road lighting , environment , people together.

twist-lock photocell, Dali dimming for multi-level control can be available.

Twist-lock photocell
7pin NEMA socket

5pin or 7pin NEMA socket is designed for the lanterns those intended to  have an ANSI C136.10-2006 receptacle to fit a twist-lock photo-control.

It conform newly published ANSI C136.41-2013 to allow led street lamp multi-controlled through the receptacle.

Technical Parameters

installation adjustment -15º up to +15º

Optical Characteristics

  • Photometric files are available upon your request .

  • Furthermore, if you are working on city projects,DIALUX road lighting simulation analysis report with our models can be offerred,to help you get the tender.
